second-hand
THIS PRODUCT IS SECOND HAND

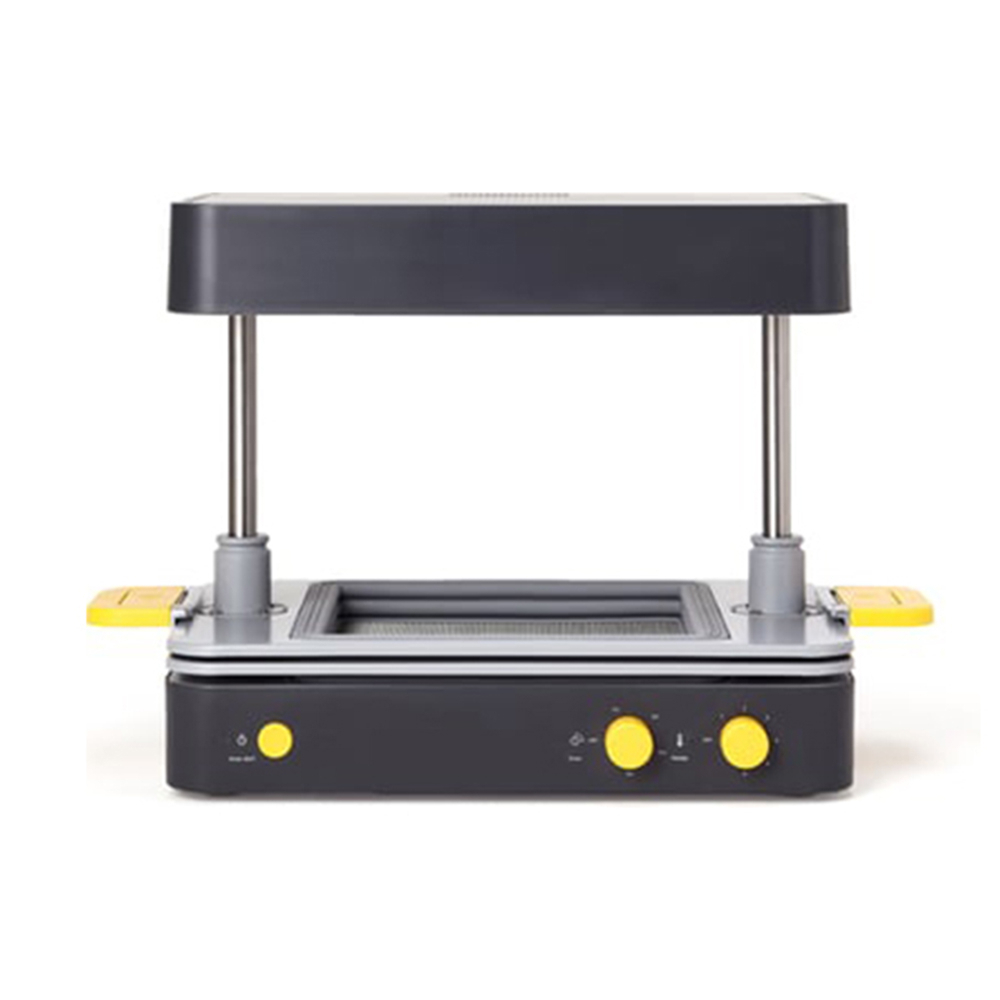

Desktop vacuum forming machine: Make molds. Fast.
Free yourself to create with industrial grade vacuum forming on your desktop: Turbocharge Your Production! ” Big Power – Small Box”
The FormBox can pick up even the finest details of your design, bringing the power of the factory to your desktop today.
Whichever industry you’re in, the Mayku FormBox can help you speed up your product development. Bringing mold production in-house can save you time and money. Getting your next idea off the ground has never been easier.
The FormBox packs industrial strength into a small space. Compact and easy to use, the FormBox makes mold-making fast, accessible and affordable.
– Design
3D print your template
– Form
Use the FormBox to make a mold of your design in seconds
– Multiply
Replicate your shape in dozens of materials
Size and Weight
- Height - 315mm
- Length (With Handles) - 466mm
- Width - 274mm
- Forming bed - 200mm x 200mm
- Draw Depth - 130mm
- Weight - 13kgs
Power
We will ship the appropriate model based on your territory along with a plug adapter for your country. 110V and 240V are available.
Temp range of the built-in heater is 160C - 340C
Heater
The metal can get quite hot, so to keep you safe, we’ve lined the front and back top edges next to the heater with two silicone strips.
We've also added supportive guide rails on each side of the ceramic heater for safety in transit.
Design Details
- A tray click and handle design, with cast aluminum hinges, in one single mechanism. Using the FormBox is as easy as possible.
- A super fine mesh to increase airflow to the 3D shape, placed on the bed with a soft silicone edge.
- A universal adaptor that enables the Mayku FormBox to work with any vacuum cleaner.
Compatible Materials
For Forming:
- The Mayku FormBox works best with thermoplastic sheets of 0.25 - 1.5mm in thickness.
- Here are the technical terms
- PETg (Commonly found in: Food safe molds)
- HIPS (Commonly found in: Disposable cups)
- ABS (The stuff lego is made from)
- Polystyrene (Commonly found in: Product packaging)
- Polyproperlene (Great for use as a mould for resin casting)
- Polycarbonate (Commonly found in: Drinks bottles)
- Polyethylene (Commonly found in: Sheet and foamed sheets
- Acrylic PMMA (Commonly found in: Light up signs)
